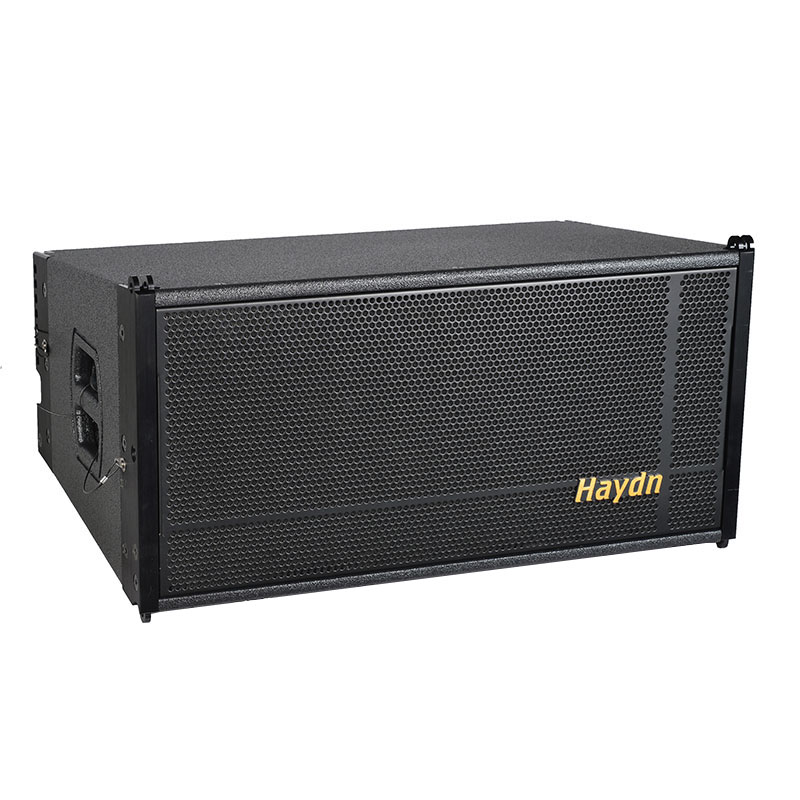

HL110/HL110A single 10" line array speaker

HL110 is a vertical linear array, compact and high-power two-way speaker. It consists of two 10-inch mid-low frequency units with a diameter of 75mm voice coil and two 1.7-inch neodymium tweeters. The tweeters are installed in a dedicated low-loss directivity On the top of the waveguide horn, it forms a 120-degree correspondence with the phase of the low frequency, so that the sound pressure of the medium and high frequencies is transmitted to the farthest distance. The cabinet is made of high-quality 13-layer piano board, and the outside of the cabinet is made of wear-resistant waterproof paint, which can be used indoors and outdoors all-weather. The sound of HL110 linear speaker is clear, soft and penetrating. The angle between each box can be adjusted from 0 to 10 degrees. The design is equipped with a convenient hanging installation system, and 4~6 boxes can be stacked on the subwoofer for direct use. This linear speaker is equipped with a complete power amplifier and audio processing system, which allows you to hang the speaker in a short time, connect the daily power and signal source of the power amplifier system, and use it immediately.

HL18B is a single 18-inch subwoofer, mainly used with HL110 line array speakers.  HL18B is small in size and easy to install. It is equipped with an 18-inch high-power long-throw low-frequency unit, which has strong power and abundant low-frequency.  Full and round. Suitable for medium and small nightclubs  It is designed in DISCO venues, bars, concert halls and other applications. Using high-quality digital audio processor, the sound is more perfect.


Model No.HL110/HL110A   line array speaker
Components10"*1+ 2*1.75"*1+Horn
Power350W(rated)/1400W(program)
Frequency Response65Hz-20kHz(±3dB)
Dispersion100º ×10º
Sensitivity(1W@1m)105dB
Max. SPL117dB
Nominal Impedance
Dimensions(H*W*D)275*635*410mm
Shipping(H*W*D)mm
NW/GW28kg/pc


ModelHL18B/HL18BA subwoofer
Components1*18" (Neodymium)
Power650W(rated)/2600W(program)
Frequency Response35Hz-300Hz
Sensitivity(1W@1m)108dB
Max. SPL131dB
Nominal Impedance
Amplifier & DSP2*400+1000W(8ohm)  2 ins 4 outs DSP
Dimensions(H*W*D)580*635*680mm
Shipping(H*W*D)mm
NW/GW52kg/pc
