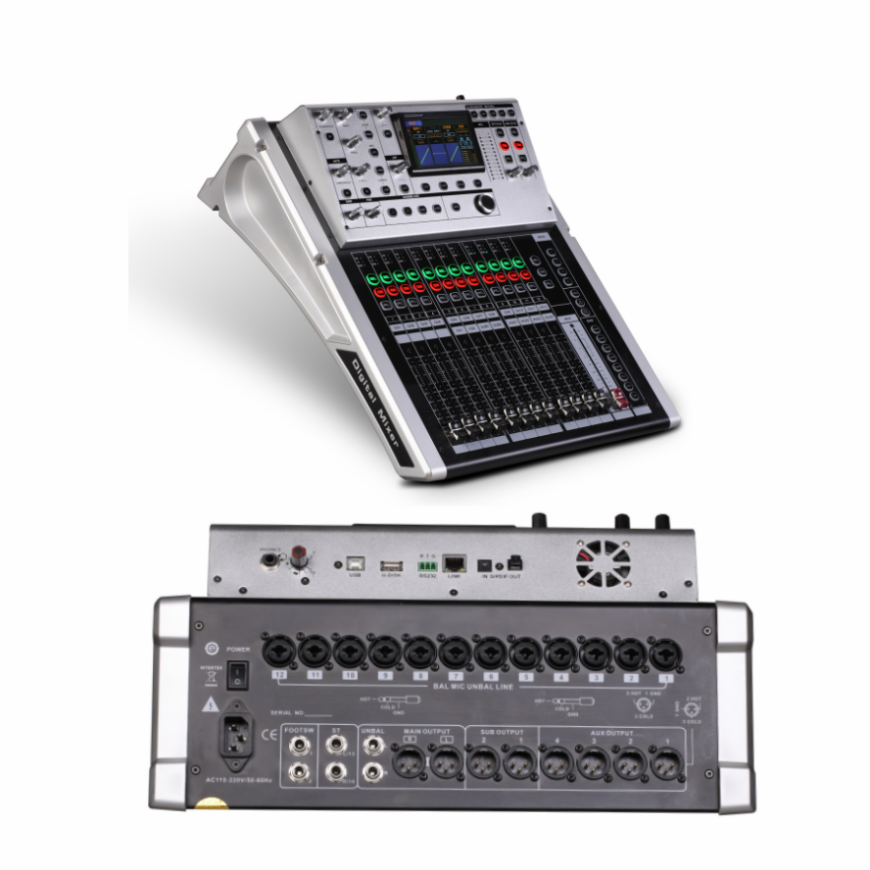

Digital mixer DT24

•･24 MIC inputs and 1 set of stereo inputs

Digital input: optical/sound card, MP3

•･Input channel pan adjustment

•･MIC input gain adjustment (digital gain)

•･+48V phantom power (MIC channels can be turned on and off independently)

•･Built-in compressor, high and low pass, 5-band parametric equalization, delay, and input channel sound and image balance adjustment

•･Quick copy function of channel parameters

•･Input and output EQ ON/OFF

•･Multi-function knob

•･Each channel is equipped with multi-function menu, mute and monitor

•･Channels are equipped with 100MM electric faders, signal and peak lights (25 ALPS electric faders)

•･12 signal outputs (main output L, R, 6 AUX outputs, 4 group outputs)

•･AUX output (pre/post fader)

•･Output processing: high and low pass filtering, 15-band parametric equalization, compressor, delay, phase

•･Digital recording function

•･Dual rows of 3-color 12-segment level indicators

•･Built-in sound card (MP3, PC plays music directly)

•･4 quick scene recall modes, 20 scene storage

•･Storage and retrieval of user parameters (can be managed on PC)

•･Built-in four-channel dual DSP effector

•･FX foot switch connector

•･Optical input/output

•･Multiple operating system control software (IOS system, Android system, WINDOWS system)

•･Supports wired network port adjustment (or wireless adjustment via external router)

•･7-inch 800*480 capacitive touch display

Input sensitivity MIC:-60db LINE:-50db

Maximum output voltage: 3V MAX

Distortion (THD): <0.03% (1KhzFull Power)

Electronic gain: -32db to 10db, 0.6~0.7 steps

Input impedance: MIC＞5K; LINE＞10K

Signal-to-noise ratio: > 85db

Frequency response: 20HZ-20KHZ+/-1db

Parametric equalization: input 5 segments (20HZ--20KHZ) ±12dB, Q0.3~15 adjustable

Output parameter equalization: output 15 segments (20HZ--20KHZ) ±12dB

Q0.3~15 adjustable

Output delay: 0-30ms

Threshold, ratio: +6dB to -50dB

Impact/release: 1--127ms

control:

Network: Fast Ethernet (100Mb0/s) port can be connected to a computer using CAT5 cable for controlling mixer parameters via TCP/IP, or to a wireless router (access point) using an IPAD or Android phone T24 application for live mix control

Or connect and control through the T24 control software interface of Windows.

Power supply: AC (250V-110V)/50-60HZ

Length, width and height: 637*515*215MM (length includes 6.35 input socket, width includes side panels, height includes machine feet; knobs not included)

Net weight: 12KG Gross weight: 15.5KG Packing size: 760*620*310MM
