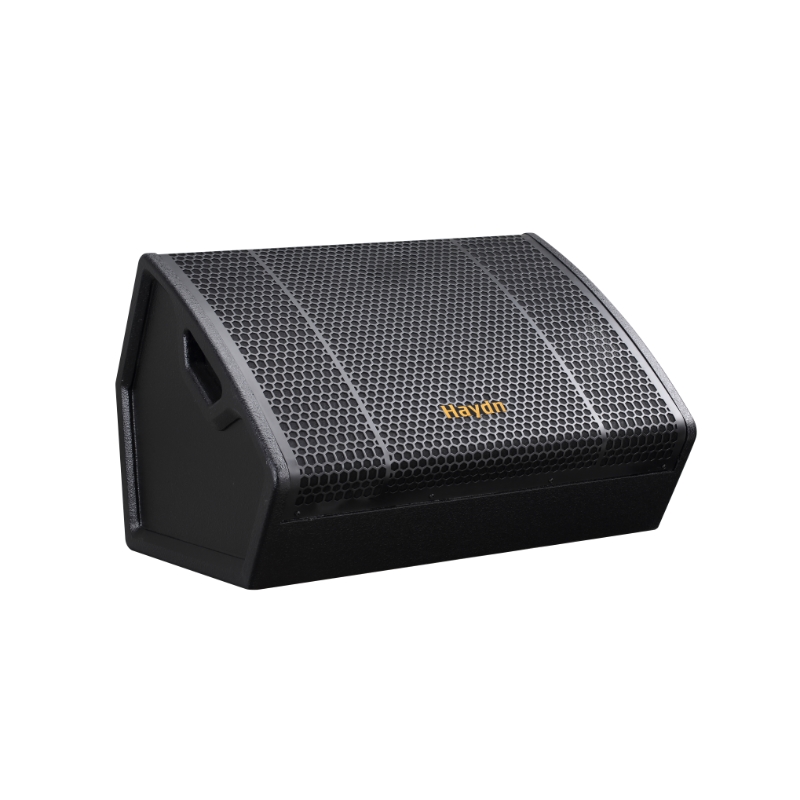

SM15/SM15A

Driver unit: HF       1*1.75" (44mm) voice coil
LF1*15"(75mm) voice coil 170 magnetic
System type                   single 15-inch two-way monitor speaker
Frequency response range    50Hz-20KHz±3dB
Sensitivity96dB SPL 1w/1m
Maximum sound pressure level   126dB
Rated impedance 8Ω
Input power (continuous/music/peak) 350W/700W/1400W
Input interface2xNeutrik®NL4MP
Dimensions(H*W*D)       500*715*373 mm
Net weight27kg/pc
