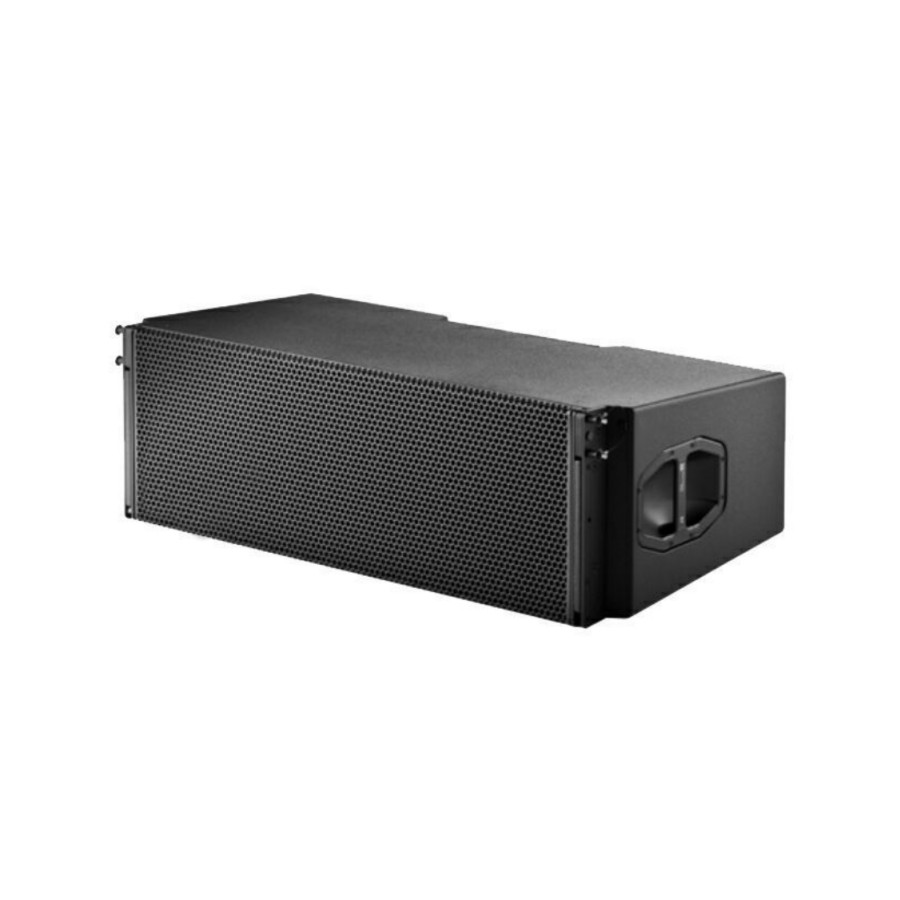

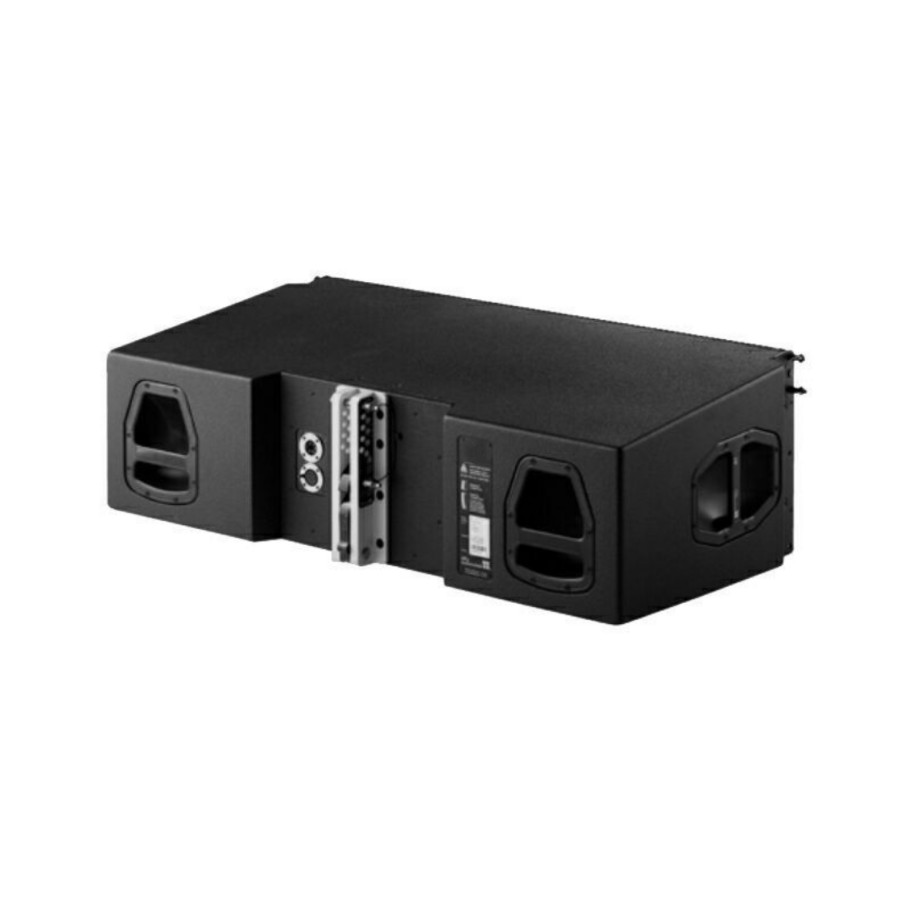

JL212 Large format 3-way line array loudspeaker (Russian birch plywood)
| Model | JL212 array speaker |
| Components | 2x12"/10"/2x1.4" |
| Power | LF:800W/MHF:300W |
| Frequency Response | 48Hz-19KHz |
| Dispersion (H×V) | 80º |
| Sensitivity(1W@1m) | 132lb |
| Max. SPL | 145dB |
| Nominal Impedance | LF:6/M HF:12Ω |
| Shipping(H×W×D)mm | 360*1100*570 |
| NW/GW(kg) | 60kg |

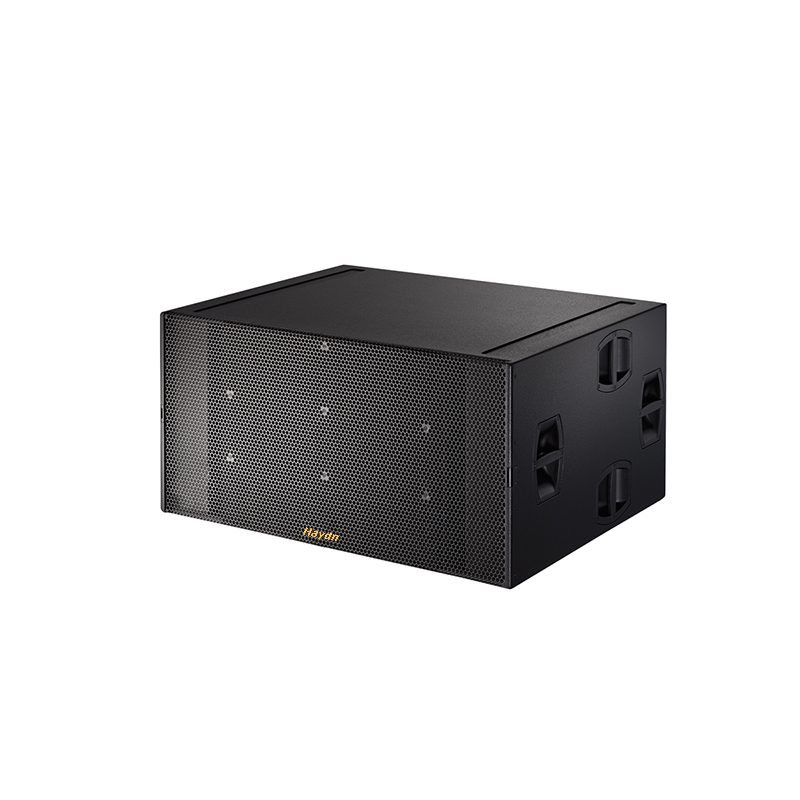

| Model | B228 dual 18' subwoofer |
| Components | 2*18" |
| Power | 1200W |
| Frequency Response | N/A |
| Dispersion (H×V) | N/A |
| Sensitivity(1W@1m) | N/A |
| Max. SPL | 143 dB |
| Nominal Impedance | 4Ω |
| Dimensions(H×W×D)mm | 585*1160*920 |
| NW/GW(kg) | 106KG |
