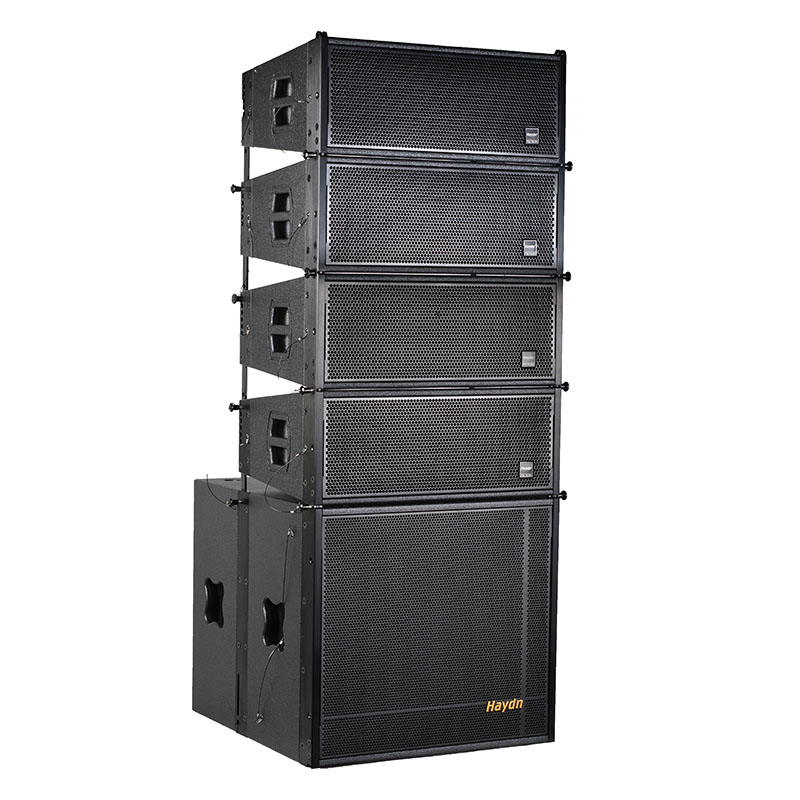

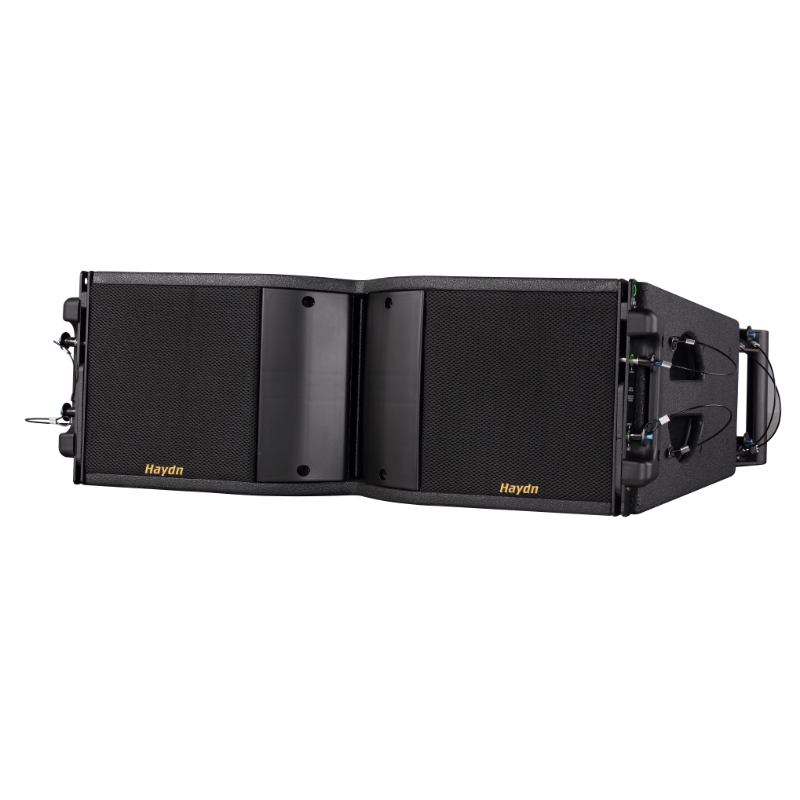

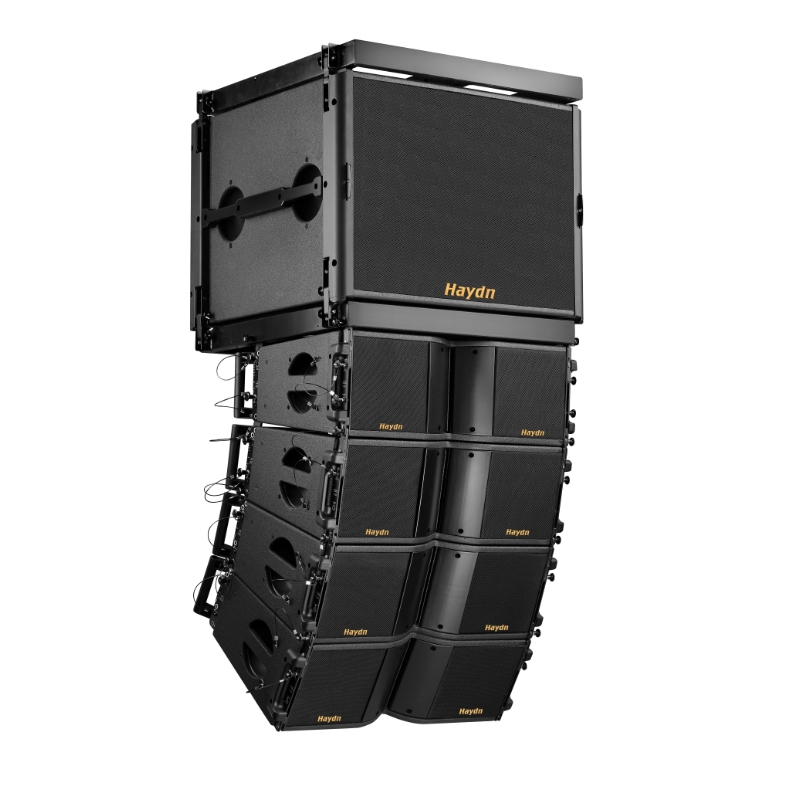

HT208/HT18S dual 8" line array speaker

Model No.HT208
Driver unit HF1*2 "(65mm voice coil)
LF2*8" 140 magnet (51mm voice coil)
System typedual 8-inch two way full range line array
Frequency response range55Hz-20kHz ±3dB
Sensitivity105dB SPL 1w/1m
Maximum sound pressure level135dB
Rated impedance16 Ω
Input power(continuous/music/peak)400W/800W/1600W
Input interface2xNeutrik ® NL4MP
Size (H*W*D)250*698*440mm
Net weight18Kg/pc

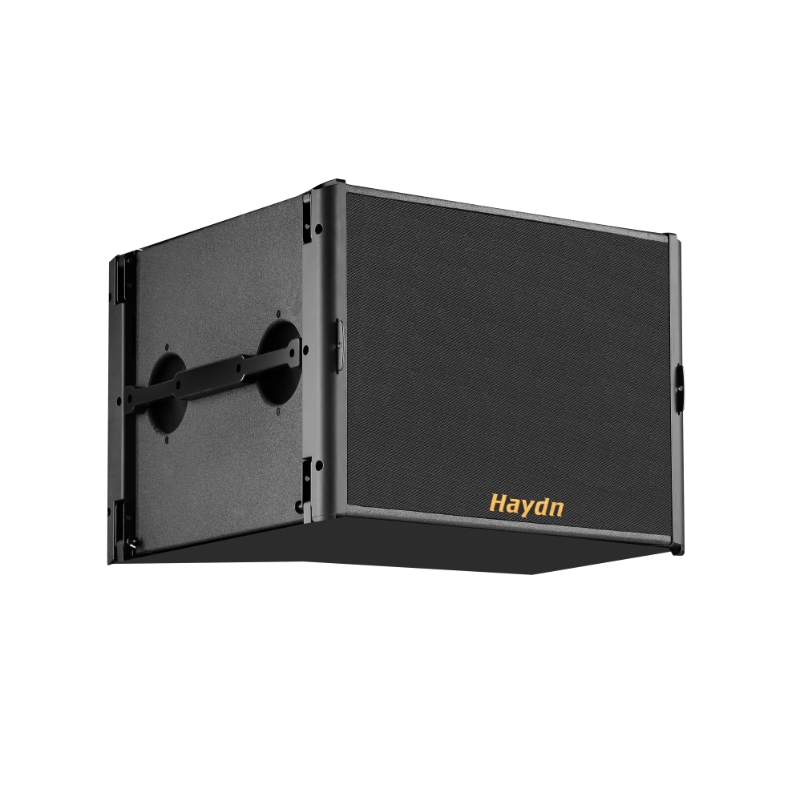

Model No. HT18S
System typeSingle 18 inch ultra-low speaker
Frequency response range28Hz-400Hz ± 3dB
Drive unit LF1*18"(100mm)
Sensitivity100dB SPL 1w/1m
Maximum sound pressure level136dB
Rated impedance8 Ω
Input power(continuous/Music/Peak)700W/1400W/2800W
Input interface2xNeutrik ® NL4MP
Box size (H*W*D)545*745*593mm
Net weight48Kg/pc
