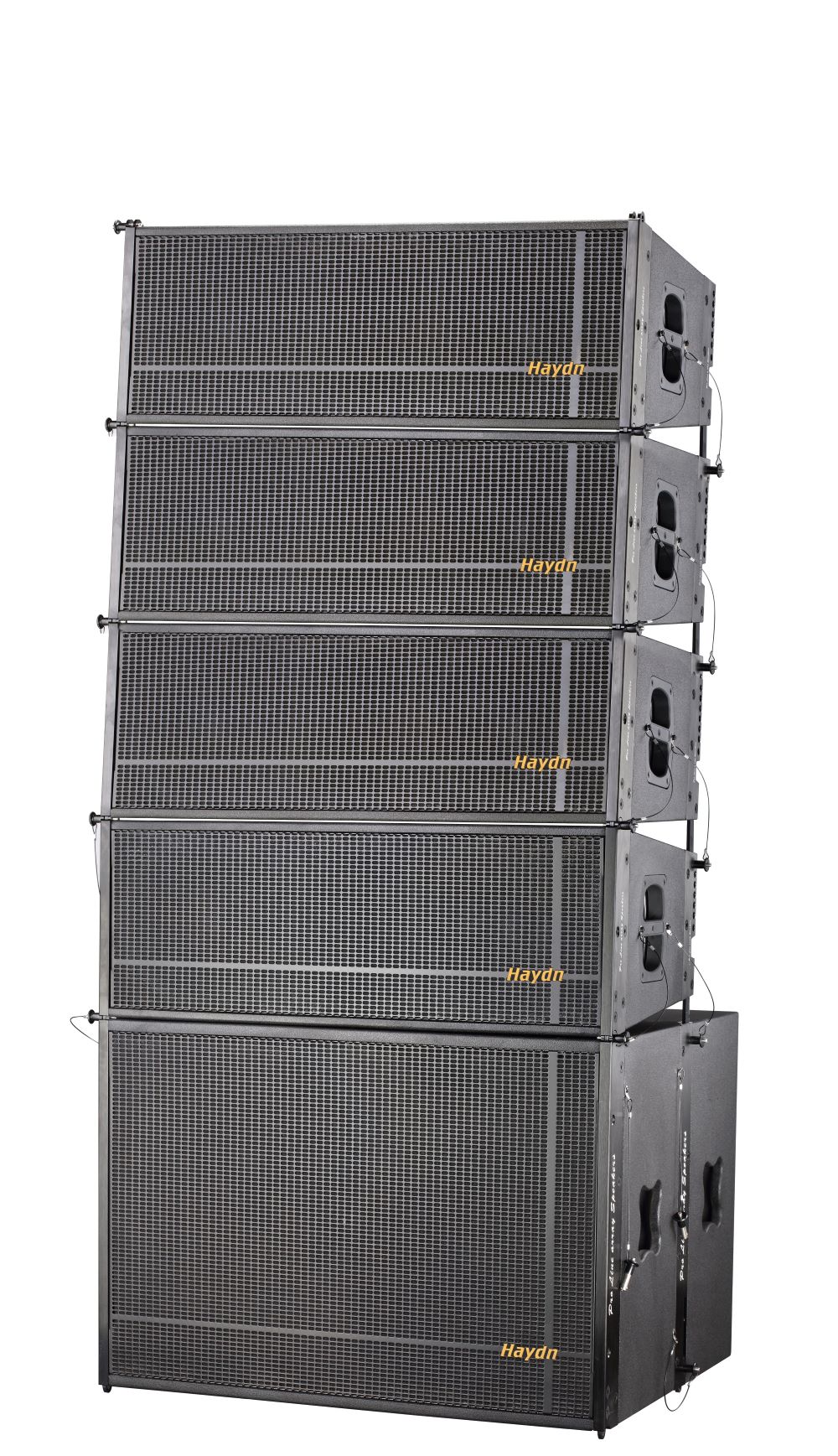

| Model No. | HL120 2 way full range array speaker |
| Components | 12"+1*1.75"*1+Horn (Neodymium) |
| Power | 400W（rated）/1600W(program) |
| Frequency Response | 50Hz-20KHz |
| Dispersion(H×V) | 90º ×60º |
| Sensitivity(1W@1m) | 103dB |
| Max. SPL | 127dB |
| Nominal Impedance | 8Ω |
| Dimensions(H*W*D) | 355*635*410mm |
| Shipping(H*W*D)mm | 470*445*720mm |
| NW/GW | 25/27kg/pc |
| Model No. | HL18B/HL18BA subwoofer |
| Components | 1*18" (Neodymium) |
| Power | 650W（rated）/2600W(program) |
| Frequency Response | 35Hz-300Hz |
| Sensitivity(1W@1m) | 108dB |
| Max. SPL | 131dB |
| Nominal Impedance | 8Ω |
| Amplifier & DSP | 2*400+1000W(8ohm) 2 ins 4 outs DSP |
| Dimensions(H*W*D) | 520*635*680mm |
| Shipping(H*W*D)mm | 540*750*700mm |
| NW/GW | 64/66.7kg/pc |
