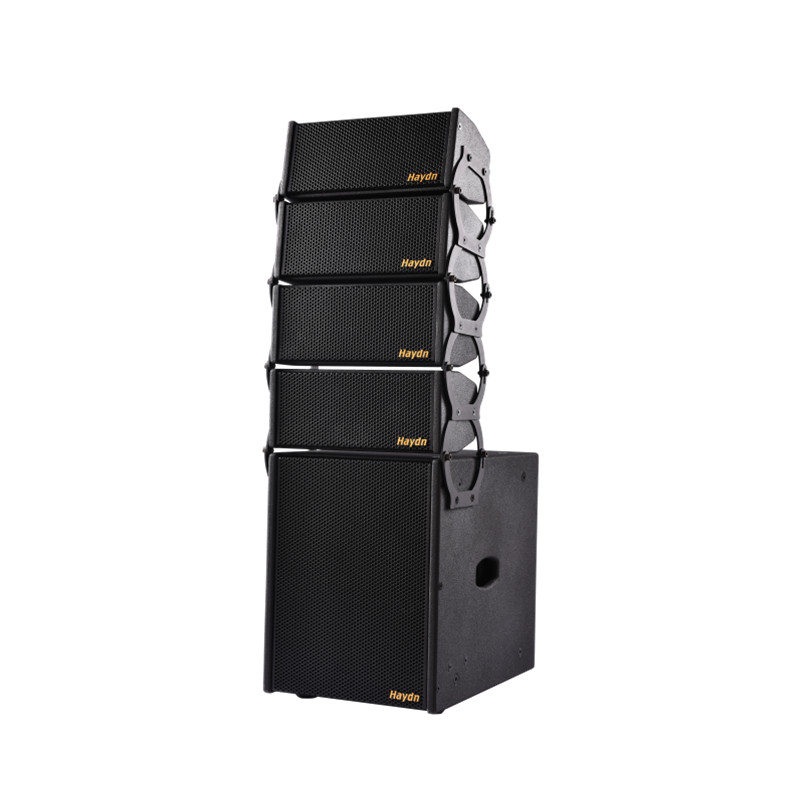

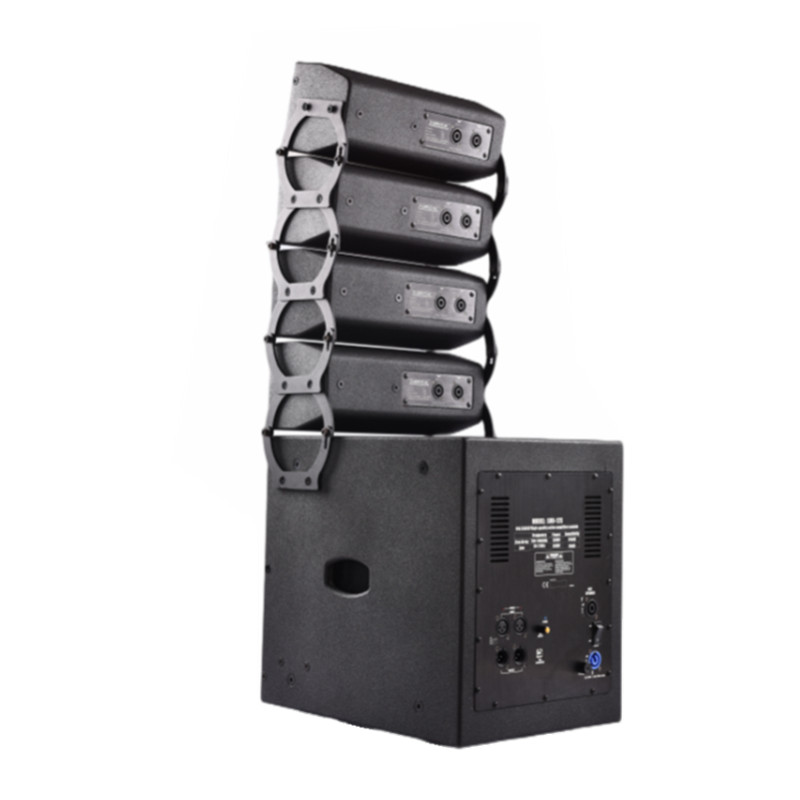

HL2450 dual 4" line array speaker

Features:

1. Special hanging parts ensure simple, safe and convenient installation.

2. The hanging angle of the box is from 0 to 12 degrees, and each variable is 1 degree, which can expand the entire line array into a large enough arc.

3. HL10B integrates low-distortion sound reinforcement technology, linear power amplifier technology and DSP digital audio processing technology. The input signal must first be processed by the pre-stage, then distributed by the DSP digital audio processor, and finally passed by the post-stage power amplifier. output to subwoofer and full-range speakers.

4 Excellent frequency response contributes to the high-fidelity reproduction effect and good sound field coverage of the whole system.

 Applications:

Sound reinforcement for small and medium-sized places

High-quality music and vocal reinforcement

Movie theaters, churches, restaurants, recording studios, conference halls, multimedia classrooms Search


Model No.HL2450 full range speaker
Components2x4" (Φ25mm)
Power80W(rated)/230W(program)
Frequency response130Hz-25KHz
Dispersion(H×V)90º ×60º
Sensitivity(1W@1m)97dB
Max. SPL118dB
Nominal Impedance
Dimensions(H×W×D)mm
Shipping(H×W×D)mm
NW/GW(kg)6.25/14.6(2pcs)


Model No.HL10B active subwoofer
Components1 x 10" (Φ50mm)
Power300W(rated)/1200W(program)
Amplifier & DSP2*350W(8ohm) + 2in 4 out DSP
Frequency Response500Hz-250Hz
Sensitivity(1W@1m)95dB
Max. SPL121dB
Nominal Impedance
Dimensions(H×W×D)mm266*490*540
Shipping(H×W×D)mm
NW/GW(kg)73/101.2 (4+1)
