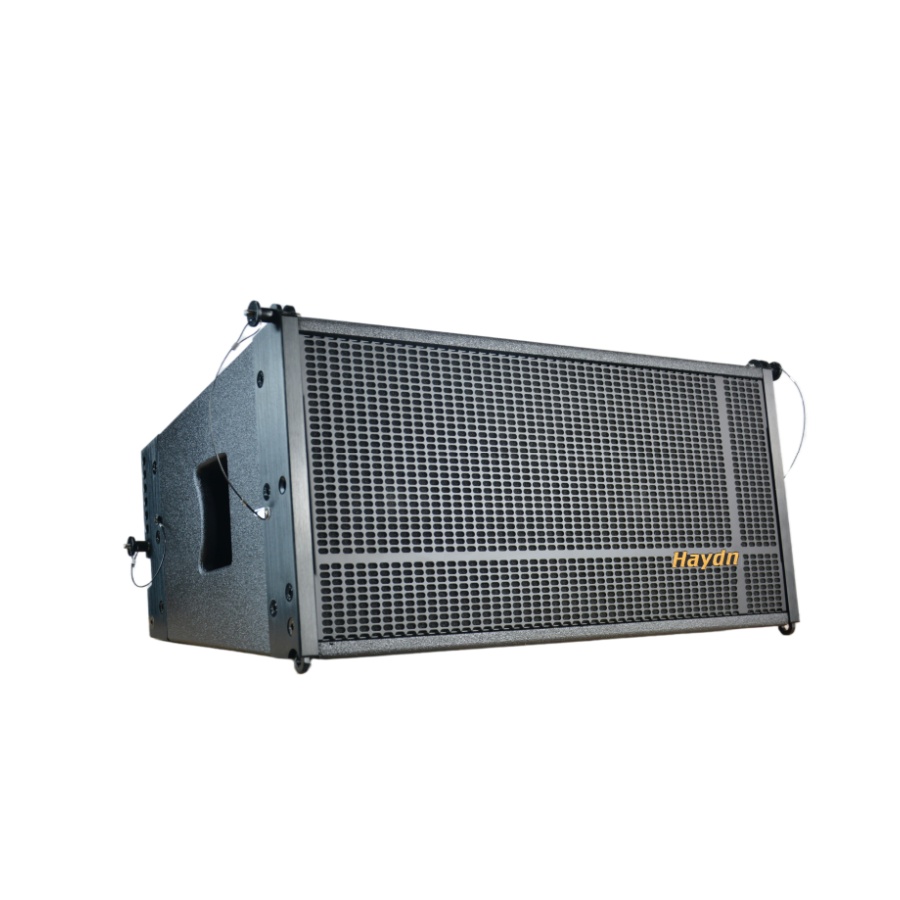

HT210/HT18S dual 10" line array speaker


Model No.HT210
Neodymium magnetic HF1*3 "(75mm voice coil)
Neodymium magnetic LF2*10" (75mm voice coil)
System typeDouble 10 inch two way full range line array
Frequency response range62Hz-20KHz ± 3dB
Sensitivity 108dB SPL 1w/1m
Maximum sound pressure level141dB
Rated impedance8 Ω
Input power (continuous/music/peak) 500W/1000W/2000W
Input interface 2xNeutrik ® NL4MP
Size (H*W*D)445*370*720mm/470*390*720mm
Net weight30Kg/pc



Model No. HT18S
System typeSingle 18 inch ultra-low speaker
Frequency response range28Hz-400Hz ±3dB
Drive unit: LF 1*18 "(100mm)
Sensitivity100dB SPL 1w/1m
Maximum sound pressure level136dB
Rated impedance8 Ω
Input power (Continuous/Music/Peak)700W/1400W/2800W
Input interface2xNeutrik® NL4MP
Box size(H*W*D)545*745*593mm
Net weight48Kg/pc
