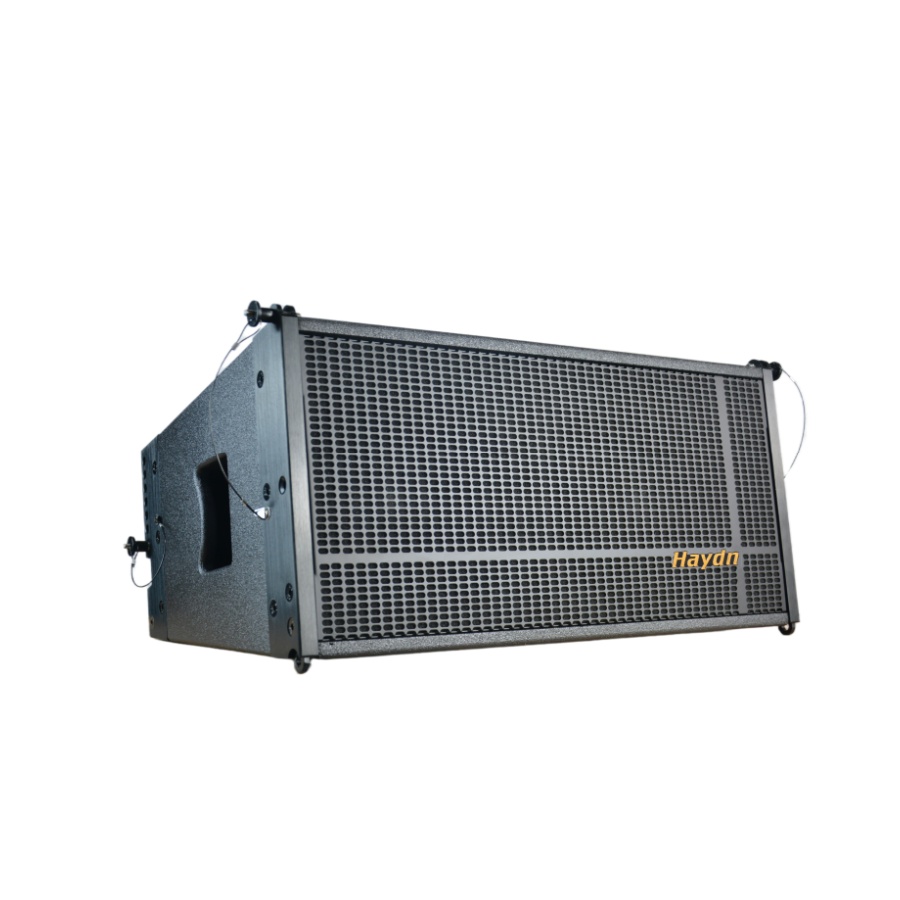

HL2103 is a vertical linear array, compact and high-power two-way speaker, which consists of two 10-inch mid-low frequency units with a diameter of 75mm voice coil and one 1.7-inch neodymium tweeters. The tweeter is installed on the special low-loss directional waveguide horn, which forms a 120-degree correspondence with the low-frequency phase, so that the sound pressure of the mid-high frequency is transmitted to the farthest distance. The cabinet is made of high-quality 13-layer piano board, and the outside of the cabinet is made of wear-resistant waterproof Polyurea paint, which can be used indoors and outdoors. The sound of HL2103 linear speaker is clear, soft and penetrating. The angle between each box can be adjusted from 0 to 10 degrees. The design is equipped with a convenient hanging installation system, and 4~6 boxes can be stacked on the subwoofer for direct use. This linear speaker is equipped with a complete power amplifier and audio processing system, which allows you to hang the speaker in a short time, connect the power supply and signal source of the power amplifier system, and use it immediately.
HL215B is a dual 15-inch high-power subwoofer speaker, mainly used with HL2103/HL2104 linear series speakers. HL215B is compact, easy to install, and can be hung or stacked. Equipped with dual 15-inch high-power long-throw. Low-frequency unit, strong power, low-frequency plump, round. It can be used together with a high-quality digital audio processor. the sound is more perfect.
Model No. | HL2103 Dual 10” array speaker |
Components | 10"*2+3"*1+Horn (Neodymium) |
Power | 600W(rated)/2400W(program) |
Frequency Response | 50Hz-20KHz |
Dispersion (H×V) | 100º ×7º |
Sensitivity(1W@1m) | 108dB |
Max. SPL | 131dB |
Nominal Impedance | 4Ω |
Dimensions(H*W*D) | 310*840*410mm |
Shipping(H*W*D)mm | |
NW/GW | 38kg/pc |
Model No. | HL215B subwoofer |
Components | 2*15" (Neodymium) |
Power | 1200W(rated)/4800W(program) |
Frequency Response | 35Hz-300Hz |
Sensitivity(1W@1m) | 112dB |
Max. SPL | 137dB |
Nominal Impedance | 8Ω |
Amplifier & DSP | 2*400+1000W(8ohm) 2 ins 4 outs DSP |
Dimensions(H×W×D) | 580*840*680mm |
Shipping(H*W*D)mm | |
NW/GW | 58kg/pc |
