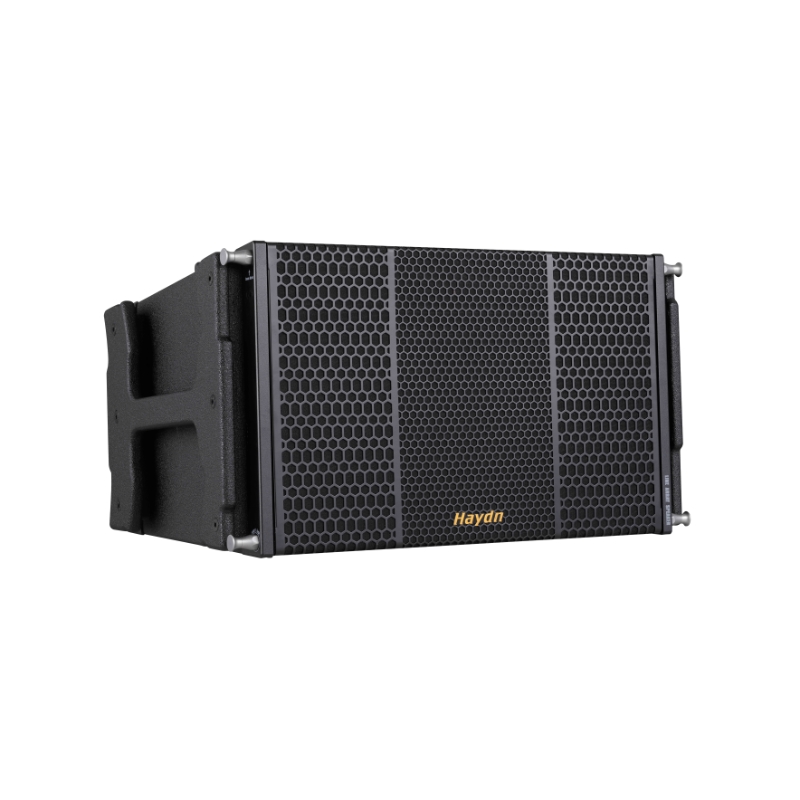

| Model No. | TG10 |
| Neodymium magnetic HF | 2*1.75 "(44mm voice coil) |
| Neodymium magnetic LF | 1*10" (75mm voice coil) |
| System type | Single 10 inch linear array |
| Frequency response range | 60Hz-18KHz ±3dB |
| Sensitivity | 98dB SPL 1w/1m |
| Maximum sound pressure level | 130dB |
| Rated impedance | 8 Ω |
| Input power(continuous/music/peak) | 350W/700W/1400W |
| Size (H*W*D) | 295*572*360mm |
| Net weight | 19Kg/piece |

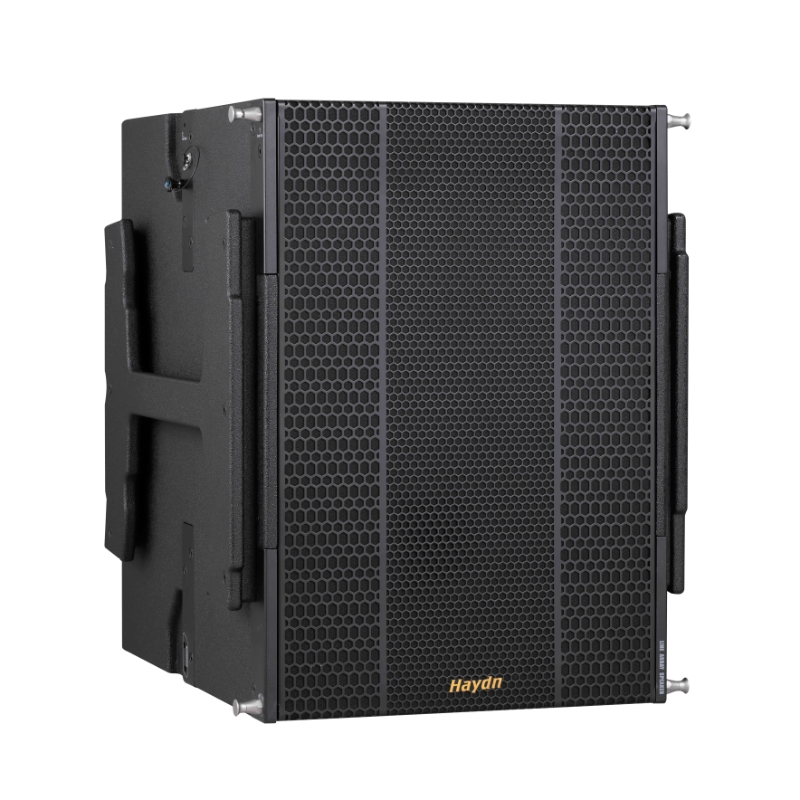

| Model No. | TG18BA |
| System type | single 18 inch active subwoofer |
| Module input sensitivity | 0.775V |
| Module power interface | Power Con |
| Module output power | 1200W/8 Ω |
| Frequency response range | 45Hz-400Hz ± 3dB |
| Drive unit LF | 1*18 "(100mm) |
| Sensitivity | 100dB SPL 1w/1m |
| Maximum sound pressure level | 136dB |
| Rated impedance | 8 Ω |
| Input power (continuous/music/peak) | 650W/1300W/2600W |
| Input interface | 2xNeutrik ® NL4MP |
| Box size (H*W*D) | 780*632*760mm |
| Net weight | 68Kg/pc |
