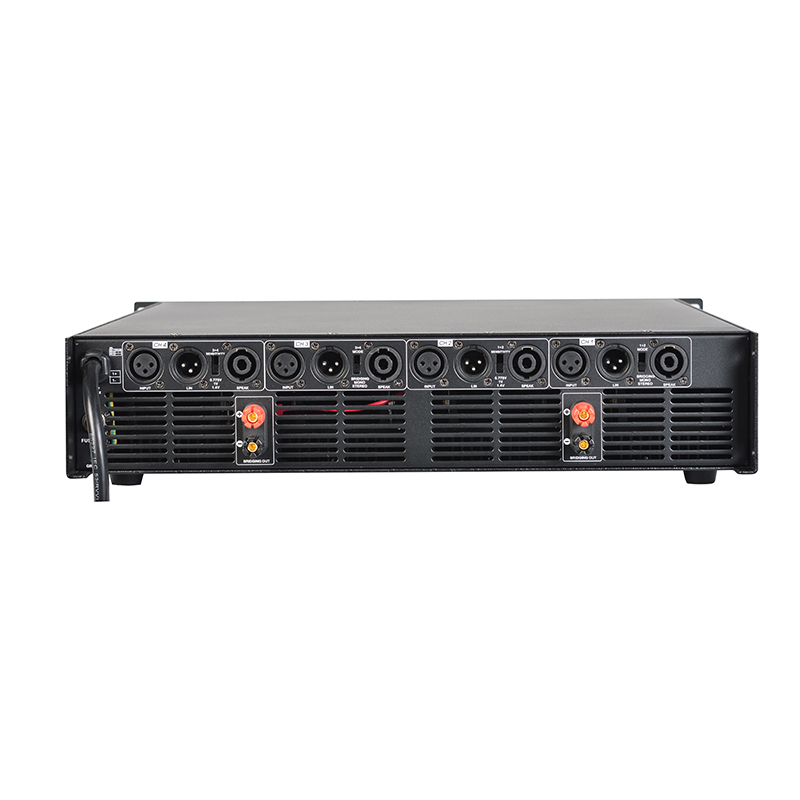

A series 4 Channel Analog Amplifier

ModelA430A450A470
8Ω Stereo power(RMS)4×350W4×550W4×700W
4Ω Stereo power(RMS)4×520W4×730W4×1000W
Frequency Response 20Hz-20KHz ±0.5%
Slew Rate30V/μs
THD(20Hz-20KHz)≤0.05%
Damping Factor>280
S/N(broad band width) ≥102dB
Input ImpedanceBalanced: 20KΩ;    Unbalanced: 10KΩ
Input Sensitivity1Vrms
Input connector2 x XLR female
Output socket2 x NL4
ClassH
MainsAC110V-240V/50-60Hz
Dimension (H*W*D)88*482*465mm132*482*480mm
Shipping (H*W*D)142*585*520(0.04CBM)mm180*585*520mm
Net Weight(KG)19.827.735.2
Gross Weight(KG)21.428.437.5
