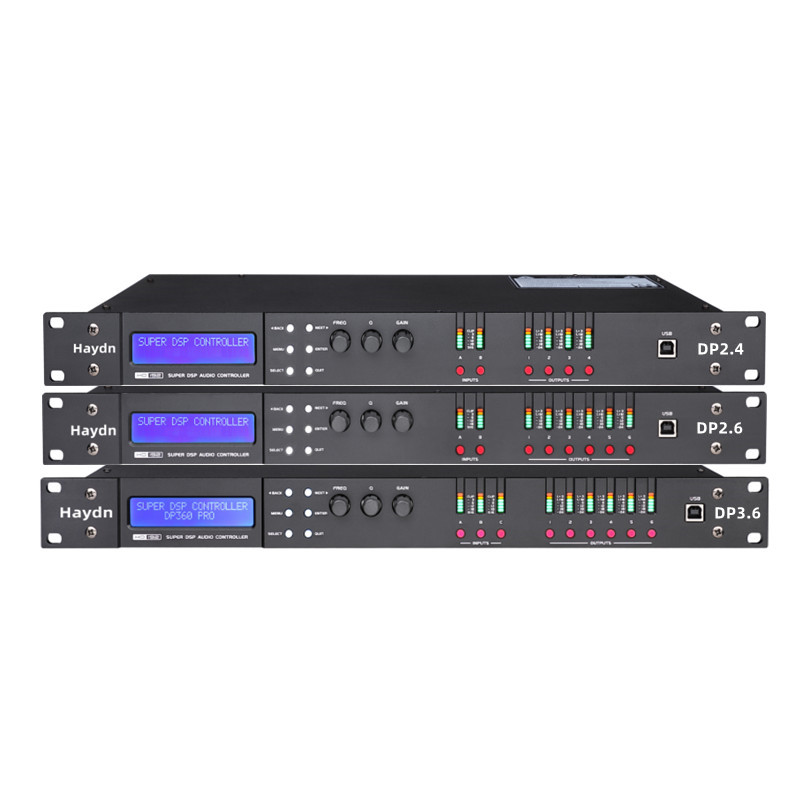

DP2.4/DP2.6/DP3.6/DP4.8 digital speaker processor

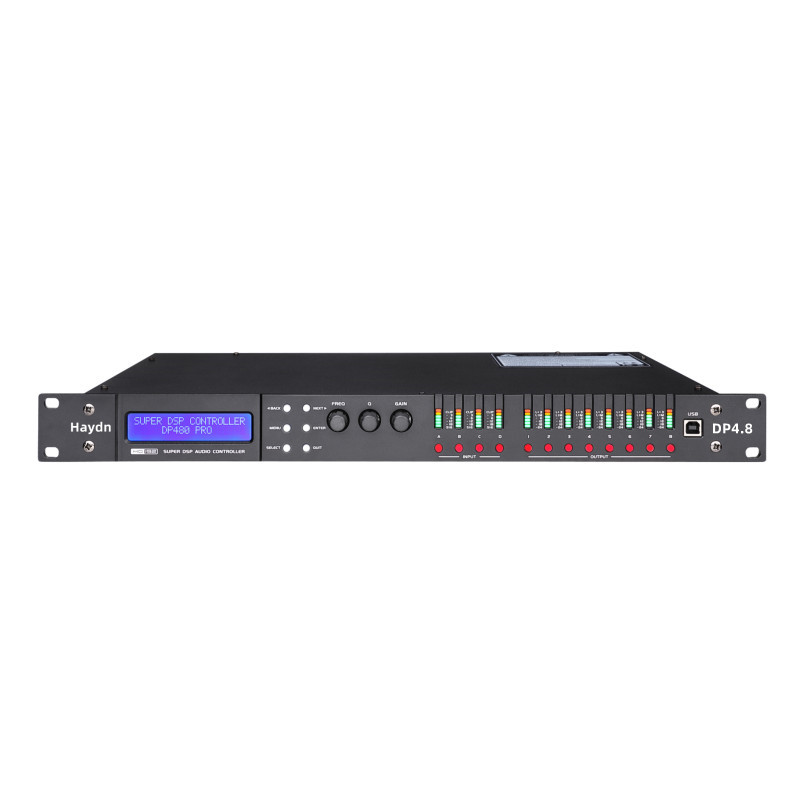

◆4-way balanced input, 8-way balanced output (DP4.8).

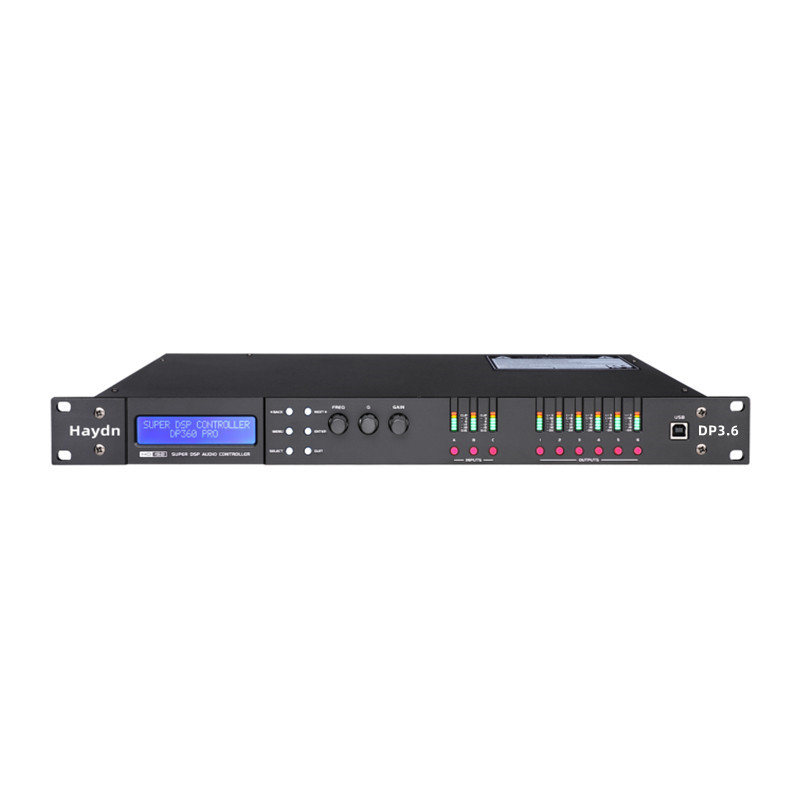

◆3-way balanced input, 6-way balanced output (DP3.6).

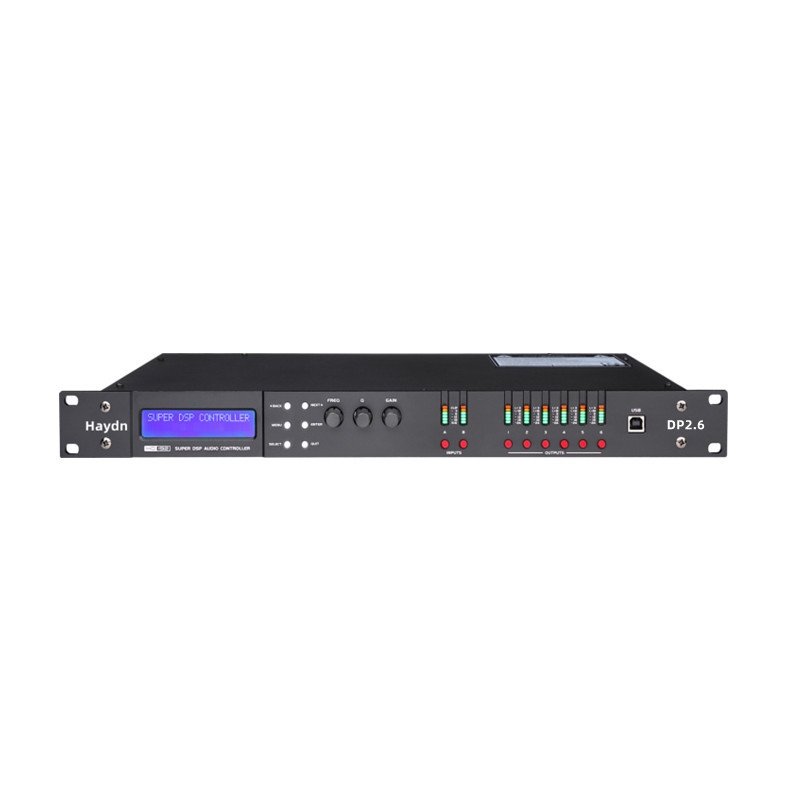

◆2-way balanced input, 6-way balanced output (DP2.6).

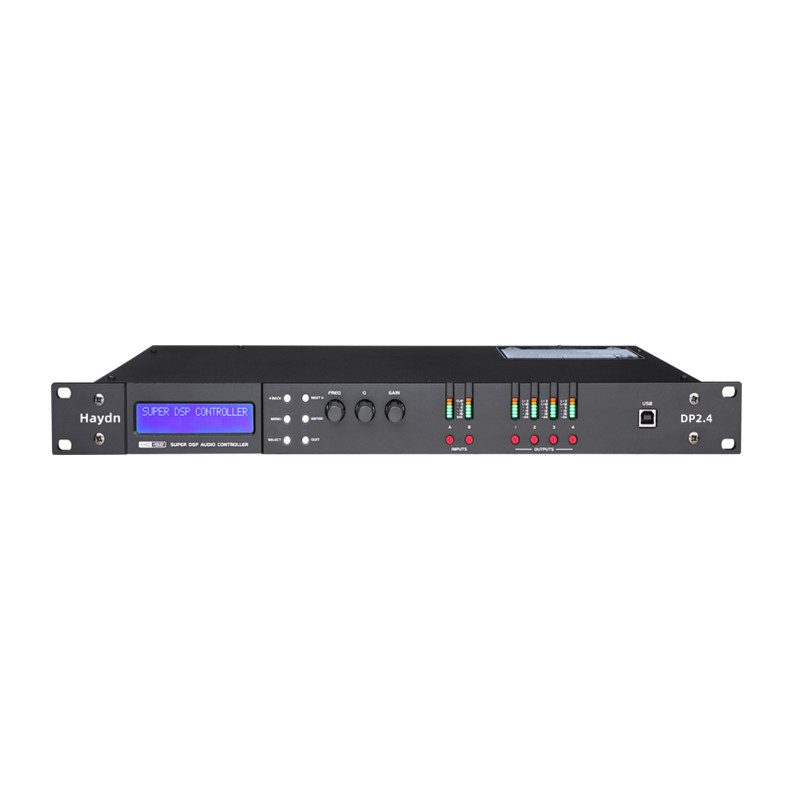

◆2-way balanced input, 4-way balanced output (DP2.4).

◆Maximum input level: +22dBu

◆Common Mode Rejection Ratio (CMRR): > 65dB @1kHz

◆56-bit DSP chip, 192kHz sampling frequency, 24bit ADC/DAC converter

◆Signal to Noise Ratio (S/N): > 110dB

◆Distortion: < 0.006% @1kHz, +4dBu

◆Input channels include: gain, phase, 31-segment graphic equalizer (GraphicEQ), 15-segment multi-function filter (Multi-Type Filter), noise gate, and a maximum delay of 1300 milliseconds (446 meters).

◆Output channels include: crossover filter (CrossOver Filter), 15-section multi-function filter (Multi-Type Filter), gain, phase, maximum 680 milliseconds (233 meters) delay, limiter, compressor.

◆The minimum adjustment step of delay adjustment is 5 microseconds (0.1 cm), and the filter frequency adjustment accuracy is 1 Hz.

◆Multifunctional filter types include:

   Parametric Equalizer

   High Frequency Shelf Filters (HiShelf-6dB, HiShelf-12dB, HiShelf-Q)

   Low Frequency Shelf Filters (LoShelf-6dB, LoShelf-12dB, LoShelf-Q)

   First-order all-pass filter (Allpass-90), second-order all-pass filter (Allpass-180)

   Bandpass Filter (Bandpass), Notch Filter (Notch)

   Variable Q value high pass filter (Highpass VariQ), variable Q value low pass filter (Lowpass VariQ)

◆Frequency crossover filter types include: Butterworth, Bessel, Linkwitz-Riley, with a maximum slope of 48dB/Oct.

◆Computer software supports copying of parameters between channels and linkage adjustment functions. At the same time, it supports batch import and export of preset parameters.

◆Speaker manufacturer's parameters are locked and hidden (intellectual property protection) (factory mode and user mode are separated).

◆The running time (cumulative time) of the equipment can be set.

◆Support energy-saving control: in movie scenes, turn off the front panel display and LED lights at regular intervals.

◆Optional lock setting, support external central control protocol (ESRP).

◆USB, RS232, RS485 control ports.

◆Imported Neutrik XLR connector.
