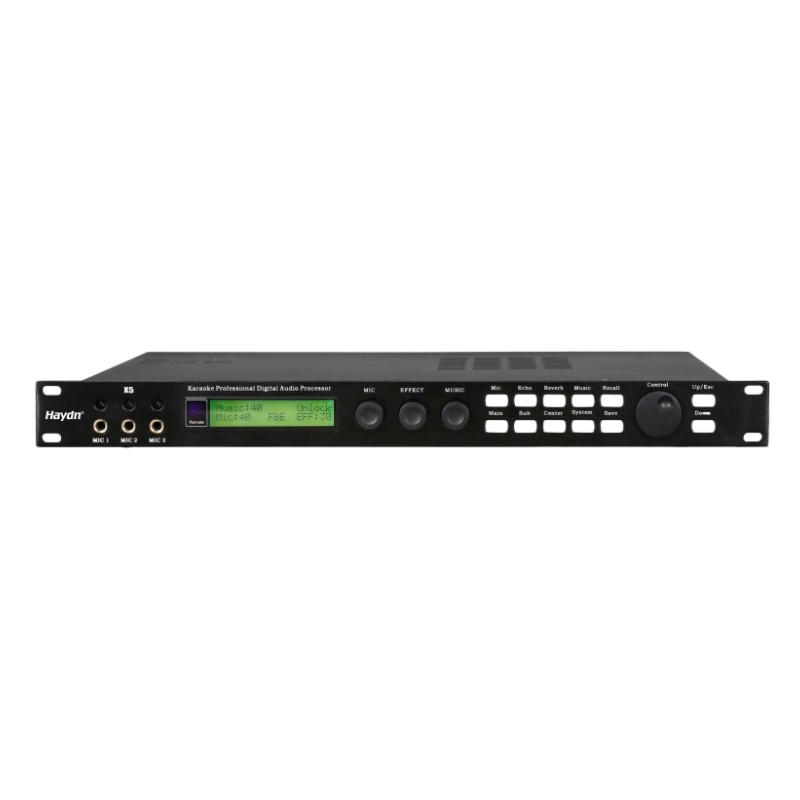

X5 karaoke processor

1This series of products is a karaoke effect device with speaker processor function, and each part of the function can be adjusted independently;

 2. Using 24Bit data bus and 32Bit DSP;

 3The MUSIC input channel is equipped with 7-band parametric equalization;

 4. The MIC input channel is equipped with 15-band parametric equalization;

 5. The main output is equipped with 5-band parametric equalization;

 6. Both the center output and the subwoofer are equipped with 3-band parametric equalization;

 7. The microphone has a three-level feedback mechanism;

 8. Can store 16 modes;

 9. Microphone output, main output, center output, subwoofer output, and rear output are all equipped with pressure limit and delay functions;

 10. Built-in administrator mode and user mode: user mode cannot be stored after adjusting parameters;

 11. The machine has a full-featured menu, which can also be set through the PC interface.


Technical parameter
Maximum input level4V(RMS) Maximum output level 4V(RMS)
Music channel gain MAX12DB Microphone sensitivity 64MV(OUT:4V)
Signal to Noise Ratio >90DB Input Voltage ~220V 50HZ
Dimensions (H*W*D) 438*218.5*47.5mm
Net weight 3.9kg
